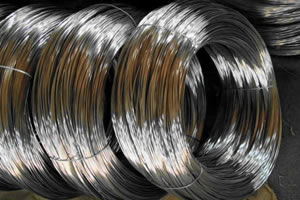

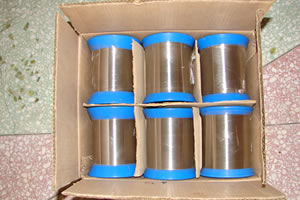

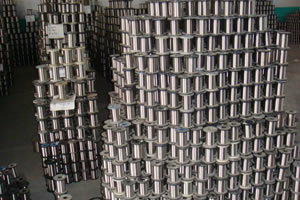

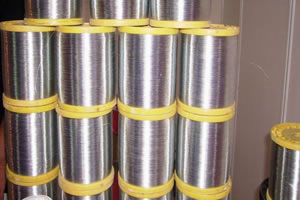

Stainless Steel Wire

Materials of stainless steel wire:304,304L,316,316L.

Sizes available of stainless steel wire: wire diameter 5mm to 0.025mm.

Stainless steel wire is used in a number of industries including wire-drawing, weaving of wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring, etc.

Stainless Steel Wire Stainless Steel Wire

Stainless Steel Wire Stainless Steel Wire

Wire Diameter(mm)

Tolerance(mm)

Max. Deviation Tolerance (mm)

0.020-0.049
+0.002/-0.001

0.001

0.050-0.074

±0.002

0.002
0.075-0.089
±0.002
0.002
0.090-0.109
+0.003/-0.002
0.002
0.110-0.169
±0.003
0.003
0.170-0.184
±0.004
0.004
0.185-0.199
±0.004
0.004
0.200-0.299
±0.005
0.005
0.300-0.310
±0.006
0.006
0.320-0.499
±0.006
0.006

AISI Grade

Chemical Composition(%)

C
Si
Mn
P
S
Ni
Cr
Mo

304
=<0.08
=<1.00
=<2.00
=<0.045
=<0.030
8.00~10.50
18.00~20.00

-


304H
>0.08
=<1.00
=<2.00
=<0.045
=<0.030
8.00~10.50
18.00~20.00

-


304L
=<0.030
=<1.00
=<2.00
=<0.045
=<0.030
9.00~13.50
18.00~20.00

-


316
=<0.045
=<1.00
=<2.00
=<0.045
=<0.030
10.00~14.00
10.00~18.00
2.00~3.00

316L
=<0.030
=<1.00
=<2.00
=<0.045
=<0.030
12.00~15.00
16.00~18.00
2.00~3.00

430
=<0.12
=<0.75
=<1.00
=<0.040
=<0.030

=<0.60

16.00~18.00

-


430A
=<0.06
=<0.50
=<0.50
=<0.030
=<0.50

=<0.25

14.00~17.00

-
