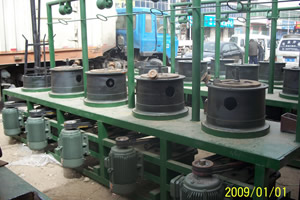

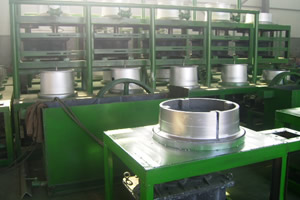

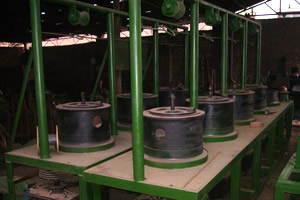

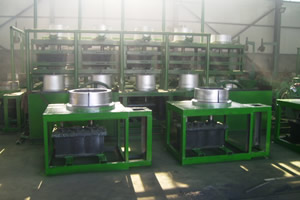

Drawing Wire Machine

Technical parameter
1. Gear box has two choices, Jiefang brand or Huanhe brand.
2.Drum Diameter(mm): 550 or 500
3. Drum Number: 5 pcs
4. Large Size: Input wire diameter is 6.5mm, and minimum out put wire diameter is 4.0mm.
    Middle Size: Input wire diameter is 4.0mm, and minimum output wire diameter is 2.0mm.
5. Drawing processes: 5
6. Efficiency: 600kg/hour for large size drawing, 280kg/hour for middle size.
7. Requirements for motor for large size drawing: Class 6, 11kw, 970r/m, 5 sets needed.
    Requirments for motor for middle size drawing: Class 4, 11kw, 1450r/m, 5 sets needed.
8. Overall dimensions(mm): L*W*H: 4200 *1100*2850
                                            L*W*H: 4600 *1100*2650
