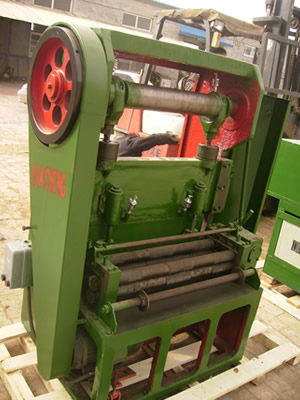

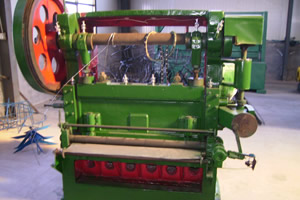

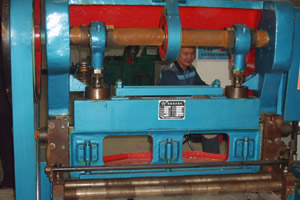

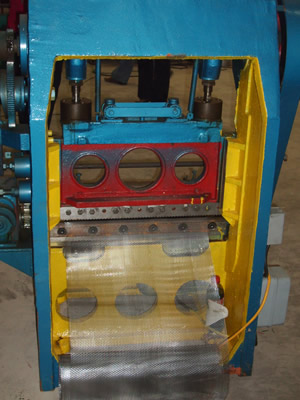

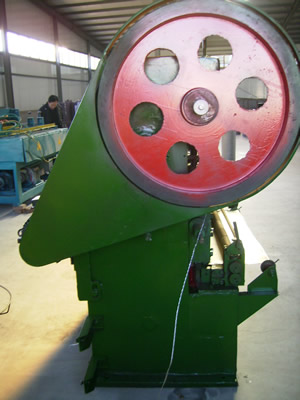

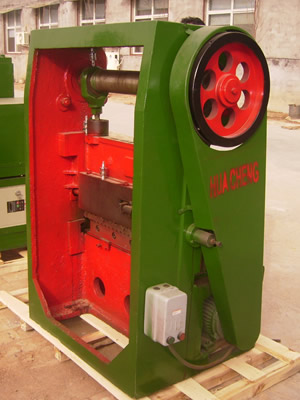

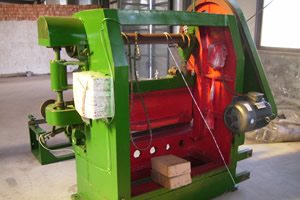

Expanded Metal Machine
Performance characteristic:
Include series HC25-6.3, HC25-16, HC25-25, HC25-63, HC25-160. They can be used for the production of stainless steel plate mesh, galvanized steel plate mesh, aluminum plate mesh, brass plate mesh and other material, with thickness range of 0.2mm~6mm, with maximum breadth of 2,000mm, with diamond style netting. The plate mesh is well used in protection of cement in building or construction, protection of mechanical devices, craftwork making, sound box screen, and fence of expressway, stadium, green, or reinforcement in building, high way or bridge.




Main technical parameter
| Type |
HC25-6.3 |
HC25-16 |
HC25-25 |
| Depth |
=1.0mm |
=1.0mm |
=1.5mm |
| Width |
500mm |
1000mm |
1250mm |
| Times |
180/min |
150/min |
150/min |
| Distance |
0-1.15mm |
0-1.2mm |
0-1.2mm |
| Length of Mesh |
=20mm |
=25mm |
=30mm |
| Motor |
2.2kw |
3kw |
4kw |
| Weight |
0.95T |
2T |
3T |
| Measuremeent |
950*570*1780 |
1800*1320*1550 |
1940*1600*2010 |
| Type |
HC25-63 |
HC26-63B |
HC25-160A |
HC25-160B |
| Depth |
=2.5mm |
=3.0mm |
=6.0mm |
=6.0mm |
| Width |
2000mm |
2000mm |
2500mm |
2500mm |
| Times |
70/min |
45/min |
70/min |
20/min |
| Distance |
0-4mm |
0-4mm |
0-7mm |
0-7mm |
| Length of Mesh |
100mm |
=200mm |
250mm |
250mm |
| Motor |
11kw |
11kw |
22kw |
22kw |
| Weight |
10T |
10T |
18T |
20T |
| Measuremeent |
2400*3500*2300 |
2400*3500*2300 |
5500*1750*3300 |
5500*1750*3300 |
|
|
