Barbed Wire
Materials: High quality low carbon steel wire, (galvanized, plastic coated, plastic sprayed)PVC wire, wire the colors of blue, green and yellow, etc.
Weaving and characteristics: Twist and weaving, Firm and beautiful.

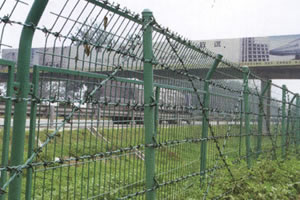

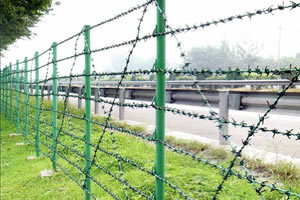

Using: Used as barrier for lawn, railways, expressways, etc.



| Barbed Wire Specification |
| Type |
Wire Gauge (SWG) |
Barb Distance (cm) |
Barb Length (cm) |
Electro Galvanized Barbed Wire; Hot-dip zinc plating barbed wire |
10# x 12# |
7.5-15 |
1.5-3 |
| 12# x 12# |
| 12# x 14# |
| 14# x 14# |
| 14# x 16# |
| 16# x 16# |
| 16# x 18# |
| PVC coated barbed wire; PE barbed wire |
before coating |
after coating |
7.5-15 |
1.5-3 |
| 1.0mm-3.5mm |
1.4mm-4.0mm |
| BWG11#-20# |
BWG8#-17# |
| SWG11#-20# |
SWG8#-17# |
| PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
|
