Crimped Wire Mesh Machine
Performance characteristic:

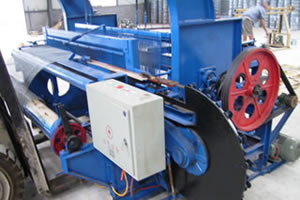

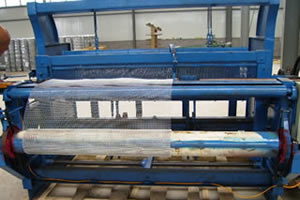

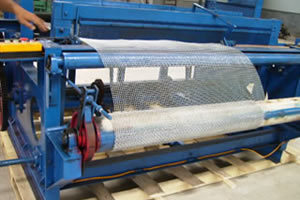

Our crimped wire mesh machine may complete a series of working procedures from mesh rolling to weaving automatically.
Weaving width of 0.9-2.5m, wire diameter of 0.4-8.0mm, mesh opening 1mm*1mm-80mm*80mm, weaving speed may reach 53 shuttles per minute, which has the characteristics of working * time-saving, high speed, and one shot forming.

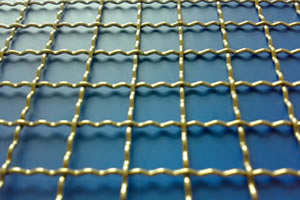

Mesh products from this equipment go through working procedures of rolling-weaving to clip two bends on the corresponding position with tight structure, which are widely applied in coal, metallurgy, construction, storages, aquiculture and poultry, and chemical indeustry, etc.


Main technical parameter
| Weaving Width |
Outside Size |
Power |
Weight |
| 1.0m(44") |
2.5*2.5*1.5 |
0.75 |
750 |
| 1.2m(52") |
2.6*2.5*1.5 |
1.1 |
800 |
| 1.3m(56") |
2.8*2.5*1.5 |
1.1 |
1000 |
| 1.5m(63") |
3*3*1.7 |
1.5 |
1200 |
| 1.8m(75") |
3*3*1.7 |
2.2 |
1400 |
| 2.0m(212") |
3.3*3*1.8 |
3.0 |
1600 |
| 2.3m(212") |
3.5*3*1.8 |
3.0 |
1800 |
| Weaving Width |
Outside Size |
Power |
Weight(kg) |
| 1.0m(44") |
2.5*2*1.5 |
0.75 |
800 |
| 1.2m(52") |
2.8*2*1.5 |
1.1 |
1000 |
| 1.3m(56") |
3.2*2*1.5 |
1.1 |
1100 |
| 1.5m(63") |
3.5*2.5*1.7 |
1.5 |
1250 |
| 1.8m(75") |
4*2.5*1.7 |
1.5 |
1500 |
| 2.0m(212") |
4.2*3*1.8 |
2.2 |
1800 |
| 2.3m(212") |
4.5*3*1.8 |
2.2 |
2000 |
| 2.5m |
4.6*3*1.8 |
3.0 |
2200 |
| 3.0m |
5.0*3*2.0 |
3.0 |
2500 |
| 3.5m |
5.5*3*2.0 |
4.0 |
3000 |
| 4m |
5.8*3*2.0 |
4.0 |
3500 |
|
