Black Iron Wire

Black iron wire is also written as black annealed wire, soft annealed iron wire, annealed iron wire or oxygen-free annealed iron wire.

The standard size: BWG5-BWG39

T/S(kg/mm2): 30-55

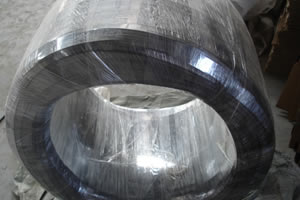

Package: 1-500kg/coil, lined with PVC strips and wrapped with plastic bag or hessian cloth.

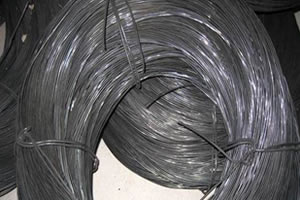

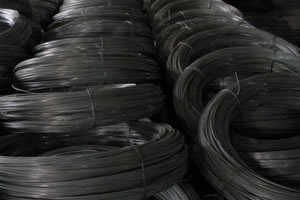

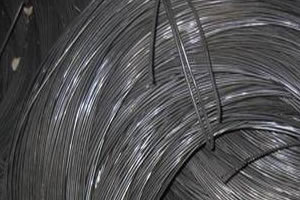

Black Iron WireBlack Iron Wire

Black Iron Wire Black Iron Wire

Gage No S.W.G.
mm		 B.W.G
mm		 B.&.S.
mm		 A.S.W.G.
mm		 A.S.W.G.
inch		 J. de p
mm		 W.G.
mm
6 4.877 5.156 4.115 4.877 0.1920 1.100 1.00
7 4.470 4.572 3.665 4.496 0.1770 1.200 1.12
8 4.046 4.191 3.264 4.115 0.1620 1.300 1.20
9 3.658 3.759 2.906 3.767 0.1483 1.400 1.30
10 3.251 3.404 2.588 3.429 0.1350 1.500 1.40
11 2.946 3.048 2.304 3.061 0.1205 1.600 1.56
12 2.642 2.769 2.052 2.680 0.1055 1.800 1.66
13 2.337 2.413 1.826 2.324 0.0915 2.000 1.84
14 2.032 2.108 1.628 2.032 0.0800 2.200 2.04
15 1.829 1.829 1.450 1.829 0.0720 2.400 2.20
16 1.626 1.651 1.290 1.583 0.0625 2.700 2.40
17 1.422 1.473 1.151 1.372 0.0540 3.000 2.60
18 1.219 1.245 1.024 1.207 0.0475 3.400 2.92
19 1.016 1.067 .9116 1.041 0.0410 3.900 3.40
20 .9144 .8886 .8128 .8839 0.0348 4.400 3.84
21 .8128 .8128 .7239 .8052 0.0318 4.900 4.20
22 .7112 .7109 .6426 .7264 0.0286 5.400 4.65
23 .6096 .6347 .5740 .6553 0.0258 5.900 5.45
24 .5588 .5585 .5105 .5842 0.0230 6.400 5.96
25 .5080 .5078 .4547 .5182 0.0204 7.000 7.00
26 .4572 .4570 .4039 .4597 0.0181 7.600 7.60
27 .4166 .4062 .3607 .4394 0.0173 8.200 8.80
28 .3759 .3555 .3200 .4115 0.0162 8.800 9.40
29 .3454 .3300 .2875 .3810 0.0150 9.400 10.00
30 .3150 .3046 .2540 .3556 0.0140 10.000 　
31 .2946 .2539 .2268 .3553 0.0132 　 　
32 .2743 .2286 .2019 .3251 0.0128 　 　
33 .2540 .2031 .1798 .2997 0.0118 　 　
34 .2337 .1777 .1600 .2642 0.0104 　 　
35 .2134 .1269 .1425 .2413 0.0095 　 　
36 .1930 .1016 .1270 .2286 0.0090 　 　
37 .1727 　 .1112 .2159 0.0085 　 　
38 .1524 　 .1006 .2032 0.0080 　 　
39 .1321 　 .0897 .1905 .0075 　 　
40 .1219 　 .0897 .1778 .0070 　 　
