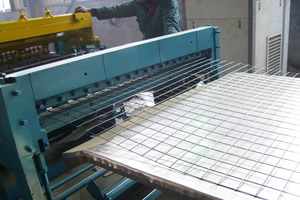

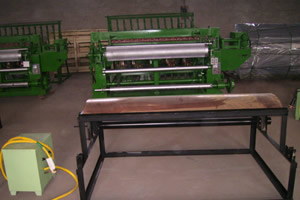

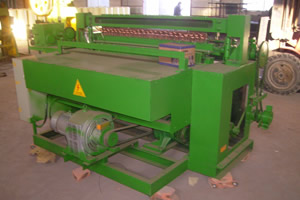

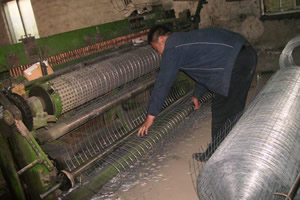

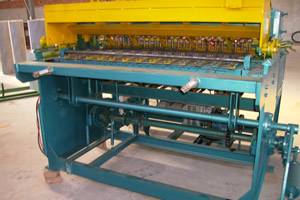

Welded Wire Mesh Machine
Performance characteristic:
Uses the large package box rack stably, the whole reliable, the noise is small, mechanical and electrical gathers one, uses the automatic control to deliver the latitude, one machine multipurpose, is produces the iron wire electric welding network the ideal equipment.



| Outside size |
2600*1700*1350 |
| Width |
914.4-1219.2(12"-48") |
| Size of mesh |
12.7-101.6(1/2"-4") |
| Diameter of wire |
Ø0.63-Ø2(BWG23-BWG14) |
| Welding speed(mesh/minute) |
65(radia) |
| Power |
380/220V 50-60HZ
50KW*4 |
| Biggest coil size |
120m(400') |
Note: welding width, mesh specification, welding wire diameter, it can be done according to requests of the customers.
|
